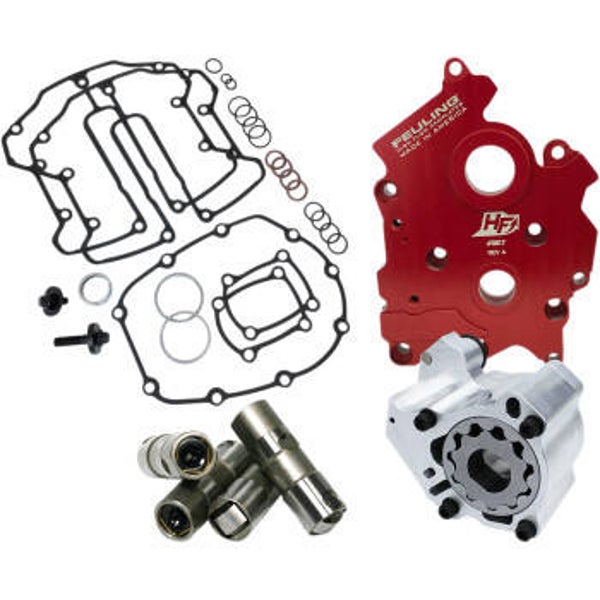

FUELING Oil System - HP+® - Oil Cooled - M8

FUELING Oil System - HP+® - Oil Cooled - M8
US$990.95
  • Includes FUELING® High Flow billet camplate made from 7075 aluminum which is 50% harder and stronger than the factory or FUELING® OE+ camplates
  • Increases oil flow and volume by enlarging the oil pump reservoirs and critical oil passages including matching the oil portholes throughout the camplate to the portholes in the engine case which increases engine oil flow to the lifters, piston cooling jets, crankshaft and rod bearings
  • FUELING® oil pumps are bench tested, the relief valve is seated and sealed to a minimum of 30 psi with full pop off at 55-60 psi
  • Increased oil volume from the larger gears and properly sized passages along with the pressure relief valve seat and seal from these oil pumps is essential for proper oiling system function
  • FUELING® oil pump and camplate combination eliminate common pressure and scavenge issues associated with the factory oiling systems
  • FUELING® M-Eight oil pumps have the groove machined on the back cover to accept the factory crank bearing seal
  • Quieter and smoother engine operation
  • Increase oil pressure, scavenge volume and engine oil flow
  • 42% more scavenge volume with port sizing, matched passages and holes to the engine case
  • 68% more oil volume to the crankshaft and connecting rod bearing
  • Engine temperatures run 15°-25° cooler
  • Oil temperatures run 15°-30° cooler
  • 10-30 lbs more psi of oil pressure
  • Reduces wet sumping, blowby and oily air cleaners
  • Test results show 2 HP gain and 2 ft/lbs of torque gain to the rear wheel on M-Eight
  • Includes billet 6061 aluminum high volume oil pump, High Flow camplate, HP+® Hydraulic roller lifters, cam installation kit, cam bearing, cam/crank bolts and washers, engine and fastener assembly lube
  • Made in the USA
  • NOTES
  • FUELING® test results show as much as 50% reduction of engine sump oil level.
  • Warnings
  • M-Eight engines must check clearance on front exhaust lifter to camshaft flange fit.

FITMENT: 2024Harley-DavidsonFLI Hydra-Glide Revival--2024Harley-DavidsonFLTRXSTSE CVO Road Glide ST--2024Harley-DavidsonRoad Glide Police FLTRXP--2023-2024Harley-DavidsonFLTRT Road Glide 3--2023-2024Harley-DavidsonFXBR Breakout 117--2023Harley-DavidsonFLHFB Electra Glide Highway King--2022-2024Harley-DavidsonFXLRST Low Rider ST 117--2022-2024Harley-DavidsonFXLRS Low Rider S 117--2022-2023Harley-DavidsonFLTRXST Road Glide ST--2022-2023Harley-DavidsonFLHXST Street Glide ST--2022-2023Harley-DavidsonFLTRKSE CVO Road Glide Limited--2022Harley-DavidsonSoftail Street Bob FXBB--2022Harley-DavidsonFXRST Low Rider El Diablo 117--2021-2024Harley-DavidsonFXBBS Street Bob 114--2021Harley-DavidsonFLH Electra Glide Revival--2020-2024Harley-DavidsonFLTRK Road Glide Limited--2020-2024Harley-DavidsonFXST Softail Standard 107--2020-2022Harley-DavidsonFLHTCUTGSE CVO Tri Glide--2020-2021Harley-DavidsonFXLRS Low Rider S 114--2019-2022Harley-DavidsonFLHT Electra Glide Standard--2019-2020Harley-DavidsonFXDRS FXDR 114--2018-2024Harley-DavidsonFLHCS Heritage Classic 114--2018-2024Harley-DavidsonFLFBS Fat Boy 114--2018-2024Harley-DavidsonFLTRXSE CVO Road Glide--2018-2021, 2023Harley-DavidsonFXFBS Fat Bob 114--2018-2021Harley-DavidsonFLHC Heritage Classic 107--2018-2021Harley-DavidsonFLSB Sport Glide 107--2018-2021Harley-DavidsonFLSL Softail Slim 107--2018-2020Harley-DavidsonFXBRS Breakout 114--2018-2020Harley-DavidsonFXLR Low Rider 107--2018-2020Harley-DavidsonFXBB Street Bob 107--2018-2020Harley-DavidsonFLDE Deluxe 107--2018-2019Harley-DavidsonFXBR Breakout 107--2018-2019Harley-DavidsonFXFB Fat Bob 107--2018-2019Harley-DavidsonFLFB Fat Boy 107--2017-2024Harley-DavidsonFLHRXS Road King Special--2017-2024Harley-DavidsonFLHTK Ultra Limited--2017-2024Harley-DavidsonFLTRX Road Glide--2017-2024Harley-DavidsonFLRT Freewheeler--2017-2024Harley-DavidsonElectra Glide Police FLHTPI--2017-2024Harley-DavidsonRoad King Police FLHP--2017-2024Harley-DavidsonFLHTCUTG Tri Glide Ultra--2017-2024Harley-DavidsonFLHX Street Glide--2017-2024Harley-DavidsonFLHXSE CVO Street Glide--2017-2023Harley-DavidsonFLHXS Street Glide Special--2017-2023Harley-DavidsonFLTRXS Road Glide Special--2017-2022Harley-DavidsonFLHR Road King--2017-2021Harley-DavidsonFLHTKSE CVO Limited--2017-2019Harley-DavidsonFLHTKL Ultra Limited Low--2017-2019Harley-DavidsonFLHTCU Electra Glide Ultra Classic--2017-2019Harley-DavidsonFLTRU Road Glide Ultra
